Validation on GPU Systems - NCCL over HPE ProLiant Gen10

Senario - 1: 2-GPUs All-Reduce

Hardware Setup

1. 2 GPUs connected in ring

2. Each GPU has 6 NVLINKs at 25 GB/s

3. NCCL ring Algorithm

ASTRA-Sim setup

1. Modelled with the ASTRA-Sim Analytical Backend

2. Bidirectional Ring

Collectives run

1. All-Reduce

2. Reduction operation - Sum

Results

Geomean error rate = 11.4%

Senario - 2: 4-GPUs All-Reduce

Hardware Setup

1. 4 GPUs connected in ring

2. Each GPU has 6 NVLINKs at 25 GB/s

3. NCCL ring Algorithm

ASTRA-Sim setup

1. Modelled with the ASTRA-Sim Analytical Backend

2. Bidirectional Ring

Collectives run

1. All-Reduce

2. Reduction operation - Sum

Results

Geomean error rate = 7.9%

Senario - 3: 8-GPUs All-Reduce

Hardware Setup

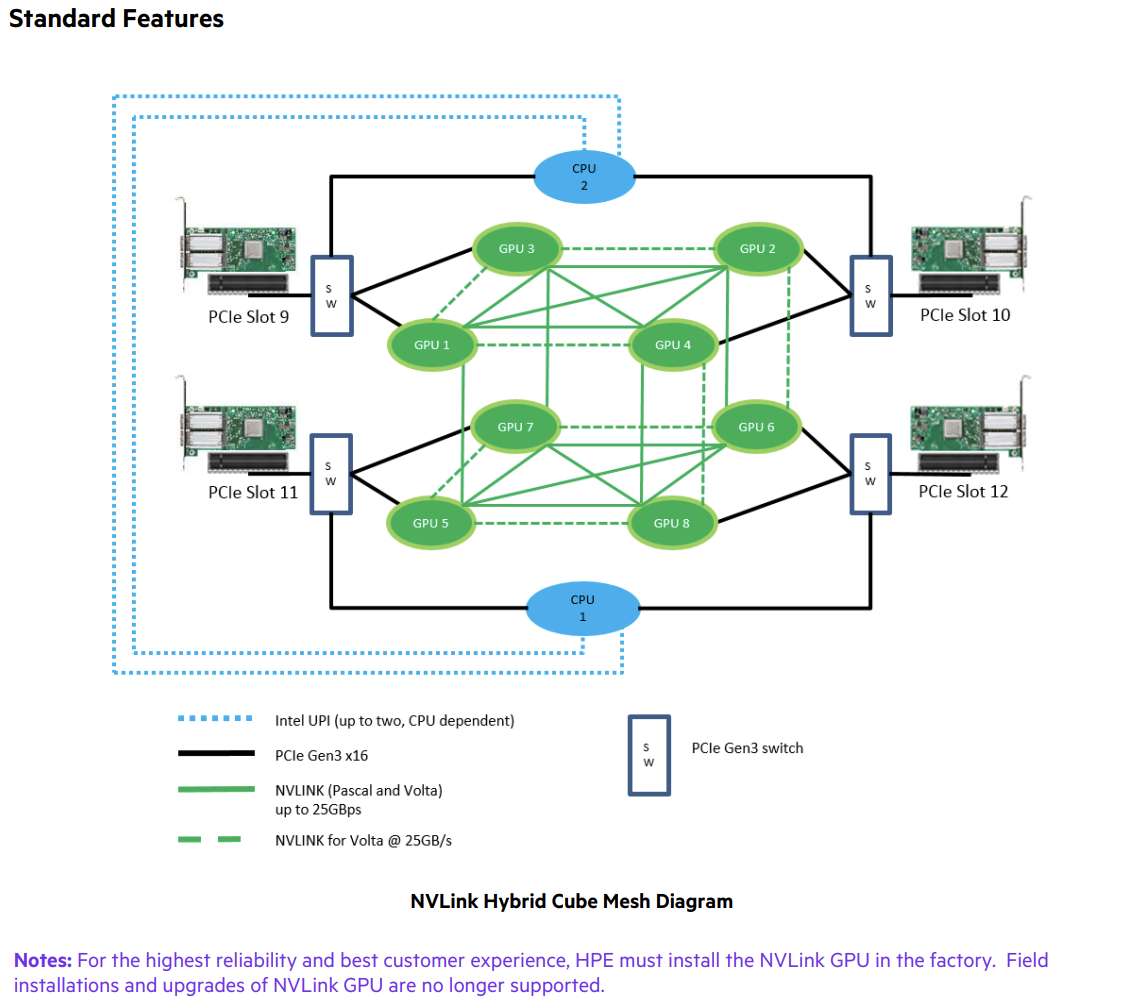

1. 8 GPUs connected in a hybrid cube mesh:

2. Each GPU has 6 NVLINKs at 25 GB/s

3. NCCL ring Algorithm

ASTRA-Sim setup

1. Modelled with the ASTRA-Sim Analytical Backend

2. 3 Bidirectional Rings

Collectives run

1. All-Reduce

2. Reduction operation - Sum

Results

Geomean error rate = 2.8%

Recommended practices

1. Emperically extract warm up latency by running smaller collectives

2. Emperically extract practical link latency by first running smaller collectives and varying number of NPUs/GPUs

For more information contact Saeed Rashidi (saeed.rashidi@gatech.edu)
